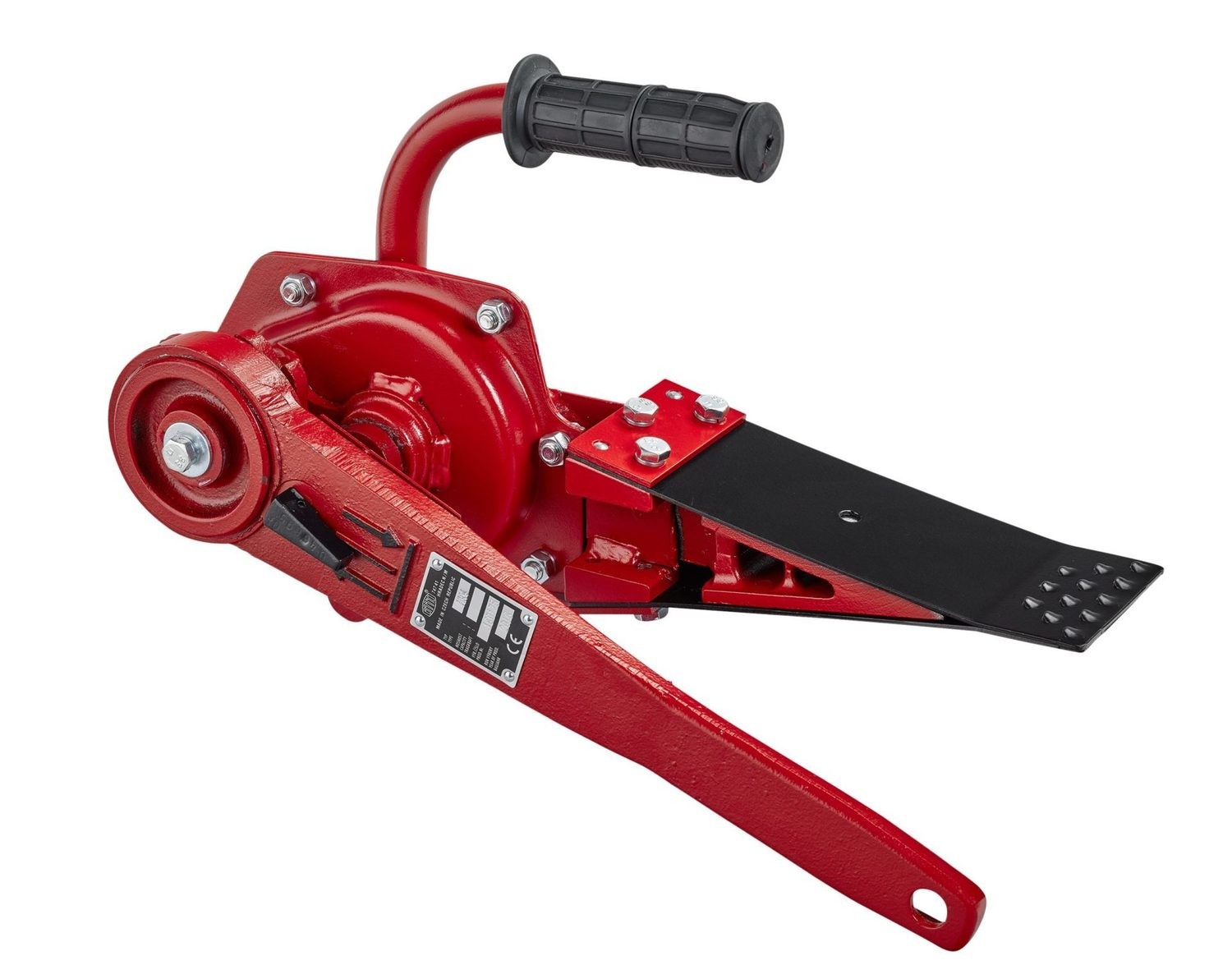

Mechanical Felling Wedge

Mechanical Felling Wedge with Rack Ratchet Drive.

Very robust mechanical felling wedge designed for ergonomic and vibration-free timber harvesting. Mechanically, the principle employed is as simple as it is functional: a gear lever multiplies the pressure from the hand lever so pressing a wedge between two steel plates via a rack drive. The tree in question is then raised slowly and finally felled. Achieved with a lifting force of 60 kN (6T) however for the user on the ratchet lever only 350 N required.

• Lifting force: 6T
• Lifting height: 5.5 cm.
• Length 44.5 cm.
• Width 15 cm.
• Height incl. handle 25 cm.
• Weight 9.9 kg.
