Koller Mechanical Felling Wedge

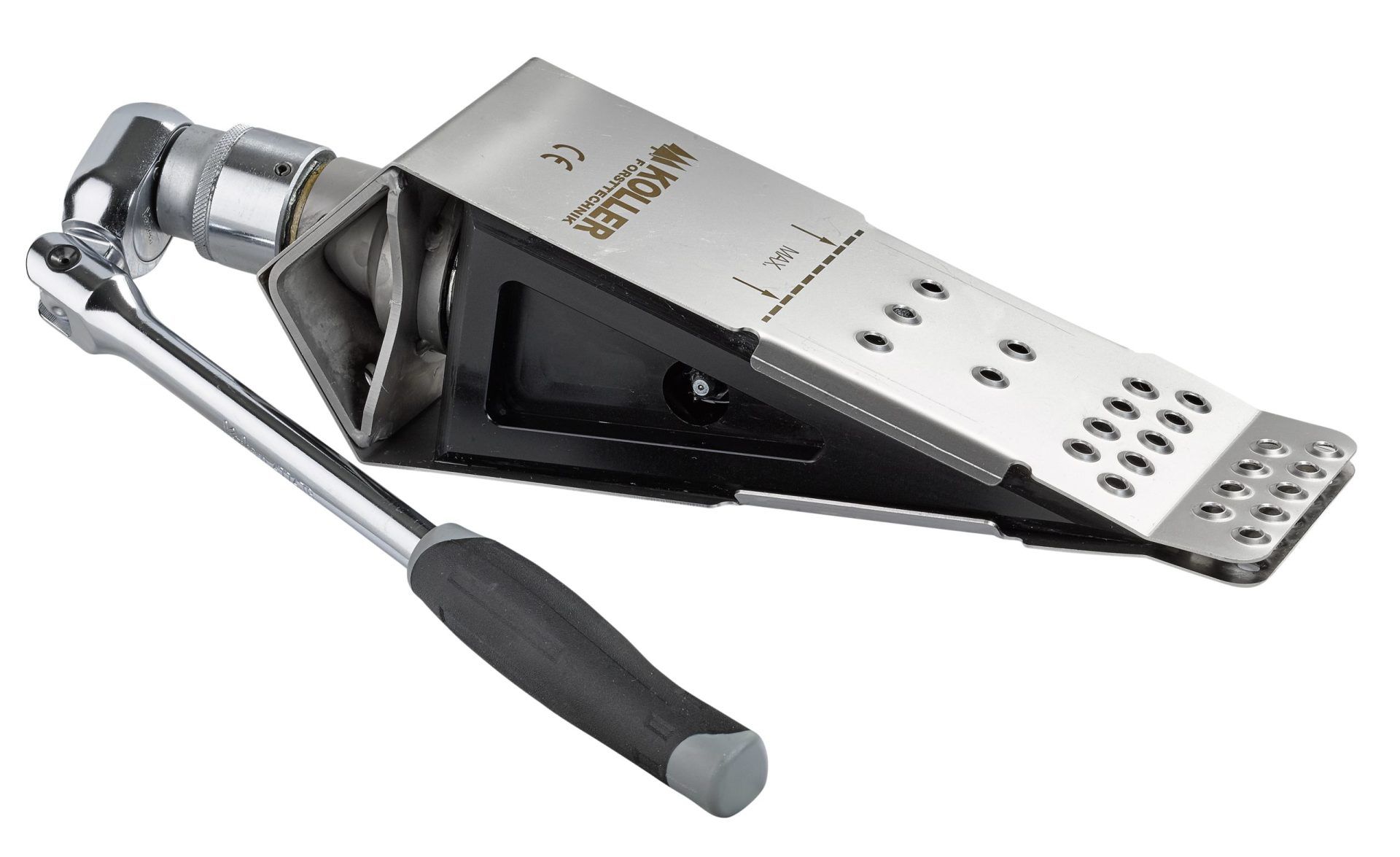

KOLLER MECHANICAL FELLING WEDGE KFS
Two models available - Medium or Large Trees
Low weight design for user benefit.
The ratchet is counterclockwise for ease of use
Special raised knobs on the spreader plate prevent the wedge from slipping out.
Medium sized trees - up to approximately 60cm diameter.
(060-032)
Length 350 mm
Width 65 mm
Height 85 mm
Wedge height 80 mm
Lever length 310 mm
Weight incl. Articulated ratchet 2.9 kg
Lifting capacity approx. 15 tons
Large sized trees
(060-029)
Length 350 mm
Width 95 mm
Height 85 mm
Ejection 94 mm
Wedge height 80 mm
Length of inner spline 300 mm
Feed per revolution 2.5 mm
Lever length 310 mm
Stroke per revolution 1.0 mm
Weight incl. ratchet 3.6 kg
Lifting capacity 20 tons
